SMC Molds

• SMC(Sheet Molding Compound) mold, also can be called FRP mold, is mainly used for the automotive parts requiring high hardness such as bumper, step, back door of buses and trucks.
• Putting the material into the mold after heated to about 180 ℃. Then, it is compressed by using a hydraulic press to make the shape.
• It is mainly used for exterior parts of passenger cars and commercial vehicles. It is also widely used for electric vehicles to the purpose of weight lightening.
• The surface of the product can be molded with glass, so it has been developed as an exterior part of the automobile.

Part name	Bus & Truck Bumper	Part Material	SMC
Method	Compression Mold	Mold Material	KP-1
Machine	Press 1,000 ton	Lead- time	60 ~ 80 days
Note

Part name	Bus Step	Part Material	SMC
Method	Compression Mold	Mold Material	KP-1
Machine	Press 2,000 ton	Lead- time	60 ~ 80 days
Note

Part name	Bus Door Side	Part Material	SMC
Method	Compression Mold	Mold Material	KP-1
Machine	Press 1,000 ton	Lead- time	50 ~ 60 days
Note

Part name	Electric Car Trunk Inner / Outer	Part Material	SMC
Method	Compression Mold	Mold Material	KP-4M(P-20)
Machine	Press 1,000 ton	Lead- time	40 ~ 60 days
Note

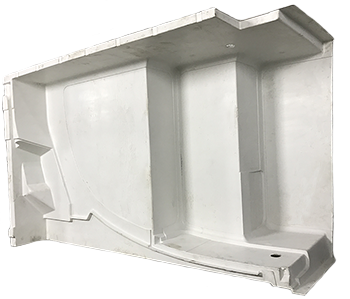

Part name	Bathtub	Part Material	SMC
Method	Compression Mold	Mold Material	KP-4
Machine	Press 2,000 ton	Lead- time	60 days
Note

Part name	Bath Sink Bowl, Etc.	Part Material	SMC
Method	Compression Mold	Mold Material	KP-4
Machine	Press 1,000 ton	Lead- time	50 days
Note
